Solar Plantation Crops Dryer for Coffee, Cocoa, Arecanut & Coconut Processing

Rudra Solar Energy’s Solar Plantation Crops Dryer is designed for organised moisture reduction from suitable plantation produce such as coffee, fermented cocoa beans, arecanut and prepared coconut materials where drying forms part of post-harvest processing.

Plantation crops should not be treated as one uniform drying category.

Coffee parchment or cherry, fermented cocoa beans, arecanut kernels and coconut material can differ considerably in:

Initial Moisture

Product Structure

Bulk Density

Oil or Fat Content

Preparation Method

Loading Depth

Airflow Requirement

Drying Surface Requirement

Required Final Moisture

Storage Requirement

Further Processing

ICAR classifies crops including coconut, arecanut and cocoa within the plantation-crop sector, while Coffee Board of India treats drying as an important stage of coffee post-harvest processing.

For buyers searching for a solar plantation crops dryer, coffee dryer, cocoa bean dryer, arecanut dryer or coconut drying machine, system selection should therefore start with the exact material being processed rather than nominal kilogram capacity alone.

The system combines solar-assisted heating, an enclosed multi-tray drying chamber and organised airflow, with configurations ranging from 5 kg/batch to 500 kg/batch.

Different Plantation Crops Need Different Drying Approaches

One of the biggest mistakes in multi-commodity processing is assuming that all plantation crops can use the same temperature, layer depth or drying duration.

Coffee may enter drying as parchment or cherry depending on processing method. Cocoa beans normally undergo fermentation before drying. Arecanut may enter processing in a defined prepared form, while coconut drying for copra requires its own material preparation and moisture-management approach. Coffee Board, ICCO and ICAR sources all treat these as crop-specific post-harvest processes rather than interchangeable operations.

For this reason, the Solar Plantation Crops Dryer should be configured and operated according to:

Commodity

Product Form

Processing Stage

Incoming Moisture

Batch Quantity

Material Volume

Loading Depth

Airflow

Temperature Sensitivity

Required Final Moisture

Intended End Use

Solar Drying Applications for Plantation Crops

Coffee Drying

Coffee is one of the strongest applications within plantation-crop drying.

Coffee Board of India distinguishes between wet processing used for plantation/parchment coffee and dry processing used for cherry coffee. It also recommends drying coffee to prescribed moisture standards and protecting drying coffee from re-wetting.

A solar dryer can be evaluated for suitable coffee drying stages according to the processor’s established workflow.

Relevant variables include:

Coffee Type

Parchment or Cherry Form

Incoming Moisture

Batch Quantity

Loading Depth

Drying Surface

Airflow

Ambient Humidity

Required Final Moisture

Coffee should not simply be exposed to the highest possible chamber temperature.

The drying procedure needs to suit the coffee-processing method and final product requirement.

Cocoa Bean Drying

Cocoa requires a particularly important processing distinction:

Fermentation and drying are separate stages.

After cocoa beans are removed from the pods, they normally undergo fermentation before the drying stage used to reduce their moisture for storage and further processing. The International Cocoa Organization specifically treats fermentation followed by drying as separate post-harvest operations.

Therefore, the Solar Plantation Crops Dryer should not be promoted as though it performs cocoa fermentation automatically.

For appropriately fermented cocoa beans, drying should consider:

Incoming Moisture

Fermentation Condition

Bean Loading Depth

Tray Area

Airflow

Drying Temperature

Ambient Humidity

Required Final Moisture

Downstream Storage or Processing

Cocoa drying needs particular care because excessively aggressive or inadequate drying can affect the post-harvest process. ICCO notes that cocoa beans are dried after fermentation and that drying conditions should be controlled rather than rushed.

Arecanut Drying

Arecanut is another important plantation crop with established dry-kernel and processed-nut uses. ICAR specifically identifies arecanut varieties suitable for dry kernel production.

Where solar drying is technically appropriate, the drying requirement should be defined according to the exact arecanut processing method.

Before drying, separate operations may include:

Harvesting

Sorting

Dehusking Where Required

Boiling or Processing Where Required

Cutting Where Applicable

Batch Preparation

The solar dryer performs the moisture-reduction stage, not the complete arecanut-processing sequence.

Coconut and Copra Drying Applications

Coconut-based processing creates another plantation-crop drying opportunity.

Where copra or another suitable prepared coconut material requires moisture reduction, a solar drying system can be evaluated according to the intended product and processing protocol.

ICAR specifically identifies improved drying technology as relevant to improving copra processing.

The dryer does not perform:

Dehusking

Shell Removal

Kernel Separation

Oil Extraction

Virgin Coconut Oil Production

Packaging

These remain separate operations.

The dryer performs the required moisture-reduction step after suitable preparation.

Common Buyer Questions About Solar Plantation Crop Drying

What plantation crops can be dried using a solar dryer?

Suitable applications can include:

Coffee

Cocoa Beans After Appropriate Fermentation

Arecanut

Prepared Coconut Material for Suitable Drying Applications

Copra Processing

Other Technically Suitable Plantation Produce

However, not every crop classified as a plantation crop should automatically be placed in the same solar dryer application.

For example, tea already has its own specialised processing workflow, while rubber and oil-palm processing involve substantially different operations. The system should therefore be evaluated according to the specific material rather than the broad plantation-crop label.

Can coffee be dried in a solar dryer?

Yes, solar-assisted drying can be evaluated for suitable coffee-processing applications.

The exact setup depends on whether the material entering the dryer is parchment coffee, cherry coffee or another appropriately prepared form.

Coffee Board of India treats drying as a defined part of post-harvest coffee processing and recommends reaching prescribed moisture standards while preventing re-wetting.

Commercial coffee drying should therefore consider moisture condition, loading depth, airflow, weather and the required final product.

Can cocoa beans be dried using solar energy?

Yes, appropriately fermented cocoa beans can be solar dried where the process and system are suitable.

But fermentation should not be confused with drying.

ICCO describes cocoa processing as extraction of wet beans, fermentation, then drying before storage or further processing.

The dryer should therefore receive the material at the correct stage of the cocoa-processing workflow.

Can one solar dryer handle coffee, cocoa and arecanut?

A suitably configured system can potentially process different compatible plantation materials in separate batches.

However, each commodity can require different:

Loading Depth

Tray Arrangement

Airflow

Temperature

Drying Duration

Moisture Endpoint

Cleaning Between Batches

Multi-commodity capability does not mean one universal drying setting.

What capacity solar plantation crops dryer should I buy?

There is no single capacity suitable for every buyer.

Dryer sizing should consider:

Fresh or Incoming Quantity per Day

Incoming Moisture

Material Entering the Dryer

Bulk Volume

Usable Tray Area

Number of Batches

Required Daily Throughput

Peak Processing Season

Available Labour

Downstream Processing Capacity

A plantation estate processing hundreds of kilograms daily has a different requirement from a small grower or FPO handling seasonal batches.

Rudra offers configurations from 5 kg/batch to 500 kg/batch, but the correct selection should be based on processing flow rather than maximum kilogram rating alone.

Why is tray area important for plantation crops?

Two plantation materials with the same weight may occupy different amounts of physical drying space.

For example, prepared coconut material, coffee parchment and cocoa beans can have different:

Particle or Product Size

Bulk Density

Layer Depth Requirement

Airflow Resistance

Drying Surface Requirement

Therefore, capacity should ideally be understood as:

Batch Weight + Usable Drying Area + Loading Depth + Daily Throughput

rather than kilograms alone.

How long does plantation crop solar drying take?

There is no universal drying time.

Drying duration can change according to:

Commodity

Incoming Moisture

Required Final Moisture

Product Size

Preparation

Loading Depth

Airflow

Temperature

Relative Humidity

Solar Radiation

Dryer Configuration

Even two batches of the same plantation crop can require different drying durations under different weather and moisture conditions.

For this reason, moisture progress and the required final condition should guide drying completion rather than a guaranteed fixed number of hours.

What temperature is suitable for plantation crop drying?

The Rudra system has a typical operating capability of 50–80°C, but that does not mean every plantation crop should be dried at any one fixed temperature within this range.

The actual temperature should be selected according to:

Coffee or Cocoa Processing Requirement

Arecanut Processing Method

Coconut Material

Incoming Moisture

Product Thickness

Heat Sensitivity

Airflow

Final Moisture Requirement

For example, cocoa has crop-specific drying requirements, and international post-harvest guidance warns against overly aggressive drying conditions.

Commodity-specific processing requirements should always take priority over a generic chamber-temperature specification.

Is a hybrid solar dryer useful for plantation crops?

It can be useful where processors require additional operating flexibility.

Plantation crops are often grown in regions that can experience humid or rainy periods, while commercial processors may still have defined production schedules.

Where appropriate, a hybrid solar plantation crops dryer can include optional electric or biomass backup.

The need for backup depends on:

Location

Crop

Season

Daily Processing Requirement

Humidity

Solar Availability

Required Turnaround

Available Energy Source

Backup should be selected according to the business requirement rather than added automatically.

Can a solar dryer be used during humid weather?

Solar drying can still be operated in humid regions, but drying behaviour is strongly influenced by the surrounding air.

Moisture removed from the product enters the drying air. That air then needs to be moved away so additional moisture can continue leaving the material.

Therefore, processors should pay attention to:

Relative Humidity

Solar Radiation

Airflow

Loading Depth

Product Temperature

Incoming Moisture

Drying Progress

An enclosed dryer provides an organised drying environment but should not be described as completely weather-independent.

Is solar drying suitable for plantation-crop FPOs and cooperatives?

Yes, a properly sized system can be evaluated for:

Plantation Crop Growers

Coffee Grower Groups

Arecanut Growers

Coconut Producers

Cocoa Growers

FPOs and FPCs

Cooperatives

SHGs

Estate-Level Processors

Plantation-Based MSMEs

Common Processing Centres

The system should be sized around the total material collected and processed, not simply the production of one farmer.

For an FPO, processing capacity should also match collection, preparation, packaging and storage capacity.

What is the price of a Solar Plantation Crops Dryer?

The price depends on the required technical configuration.

Important factors include:

Batch Capacity

Drying Chamber Size

Usable Tray Area

Number of Trays

Airflow Configuration

Construction Material

Solar-Only or Hybrid Arrangement

Electric Backup

Biomass Backup

Monitoring Requirement

Installation

Customisation

A small coffee grower and a commercial multi-crop plantation processor will not necessarily require the same system.

Therefore, Solar Plantation Crops Dryer price should be compared against usable capacity and processing requirement, not purchase cost alone.

How do I choose a solar dryer for coffee, cocoa or arecanut?

Before selecting equipment, provide:

Commodity: Coffee, cocoa, arecanut, coconut or another suitable material?

Product Form: Cherry, parchment, fermented bean, kernel or other prepared form?

Incoming Quantity: Kilograms per batch or day?

Incoming Moisture: What is the condition before drying?

Required Final Moisture: What storage or processing condition is required?

Drying Area: How much tray surface is required?

Processing Season: Seasonal or year-round?

Daily Throughput: How many batches are required?

Backup Requirement: Solar-only or hybrid?

Further Processing: What happens after drying?

These details provide a much stronger basis for system selection than asking only for a 50 kg, 100 kg or 500 kg dryer.

Plantation Crop Processing Is More Than Drying

Drying should be positioned correctly within the wider post-harvest workflow.

A plantation crop may require operations such as:

Harvesting

Sorting

Cleaning

Pulping

Fermentation

Dehusking

Cutting

Shell Removal

Drying

Grading

Curing

Roasting

Oil Extraction

Packaging

Storage

Which stages apply depends on the crop.

For coffee, Coffee Board distinguishes wet and dry processing routes and gives separate post-harvest drying guidance. For cocoa, fermentation occurs before drying.

The Solar Plantation Crops Dryer specifically performs the moisture-reduction stage appropriate to the selected commodity.

Why Airflow Matters in Plantation Crop Drying

Solar heat provides energy for moisture removal, but moisture-bearing air must also leave the product environment.

Drying effectiveness depends on the relationship between:

Heat Input

Air Movement

Initial Moisture

Material Structure

Layer Depth

Tray Spacing

Ambient Humidity

Required Final Condition

Increasing temperature without suitable airflow does not automatically create a better drying process.

Similarly, overloading the trays may reduce effective air contact with material deeper within a batch.

Post-Drying Moisture Management

Finishing a drying batch does not eliminate the need for careful handling.

Depending on the crop, post-drying operations may include:

Cooling

Moisture Verification

Sorting

Grading

Bagging

Packaging

Storage

Protection from Re-Wetting

Coffee Board specifically advises protecting drying coffee from re-wetting and storing it in clean, well-ventilated, dry conditions.

This principle is particularly relevant for plantation regions where ambient humidity can remain high.

Solar Plantation Crops Dryer for Commercial Processing

Rudra Solar Energy’s Solar Plantation Crops Dryer can be configured for users ranging from small plantation growers to organised commercial processors.

Potential users include:

Coffee Growers

Coffee Estates

Cocoa Growers

Arecanut Growers

Coconut Farmers

Plantation FPOs

Farmer Cooperatives

SHGs

Agro-Processing MSMEs

Common Processing Facilities

Plantation-Based Enterprises

Commercial Processing Units

The appropriate configuration depends on the commodity, processing stage, batch volume, tray requirement, airflow and expected production schedule.

Rudra Solar Energy for Plantation Crop Drying

Rudra Solar Energy designs and manufactures solar dryer systems for agricultural, food-processing and commercial drying applications.

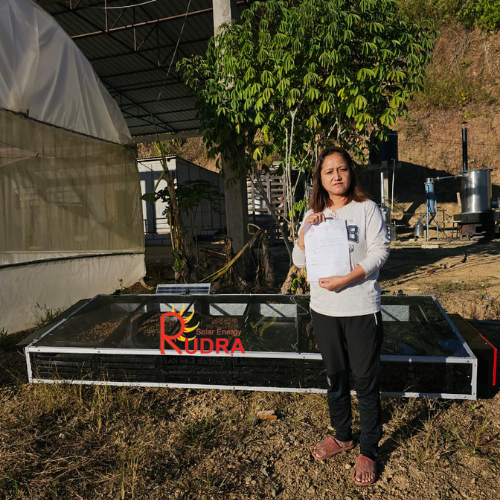

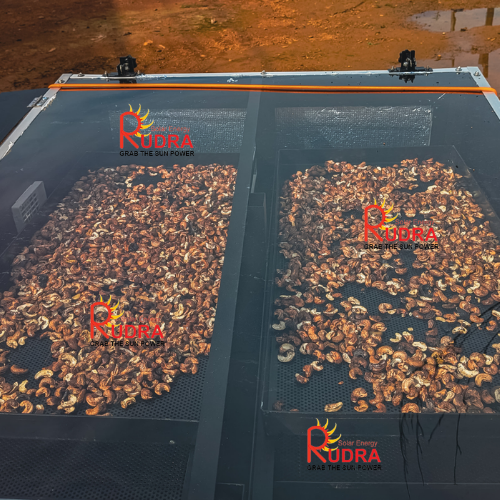

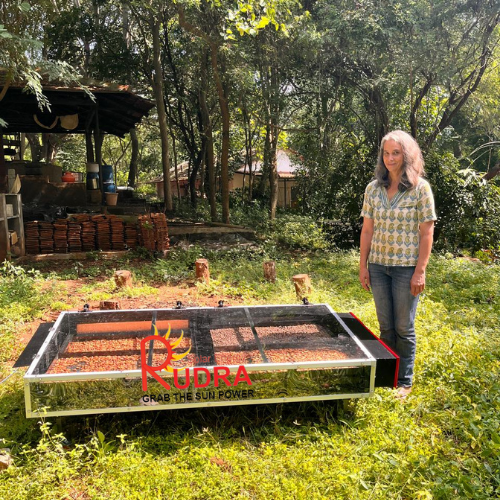

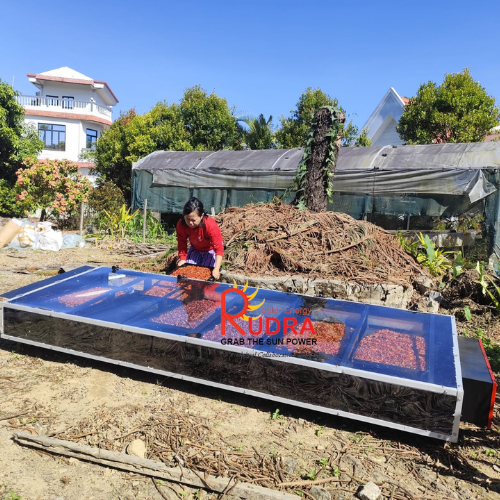

The Solar Plantation Crops Dryer is designed around application-specific drying rather than assuming that coffee, cocoa, arecanut and coconut materials behave identically.

Capacity configurations are available from 5 kg/batch to 500 kg/batch, with solar-primary and suitable optional hybrid configurations according to processing requirements.

For buyers searching for a solar plantation crops dryer, plantation crop drying machine, coffee solar dryer, coffee drying machine, cocoa bean dryer, cocoa drying machine, arecanut dryer, arecanut drying machine, coconut dryer, copra dryer, commercial solar dryer or hybrid solar dryer, equipment selection should begin with the crop and exact post-harvest processing stage.

Share the plantation crop, incoming material form, batch quantity and daily processing requirement to discuss an appropriate system configuration.
