Cabinet Solar Dryer

Cabinet Solar Dryer for Food & Agricultural Processing

The Cabinet Solar Dryer from Rudra Solar Energy is an enclosed, tray-based solar dryer designed for farmers, SHGs, FPOs, food entrepreneurs, agricultural processors, institutions and businesses looking for an organised solution for moisture reduction from suitable food and agricultural products.

Available across a capacity range of 5 kg/batch to 500kg/batch, the Cabinet Solar Dryer can be selected according to the commodity, fresh batch quantity, tray requirement and processing scale. This makes the cabinet format relevant for small product trials as well as larger batch-processing requirements.

The enclosed chamber keeps the loaded product inside a defined drying environment and helps reduce direct exposure to dust, insects, birds and sudden rainfall compared with completely open-sun drying.

Rather than relying only on direct outdoor exposure, the system combines solar heat with organised air movement across the loaded trays to support moisture removal.

How the Cabinet Solar Dryer Works

Effective drying requires more than simply increasing temperature.

As moisture moves out of fruits, vegetables, herbs or other agricultural products, the surrounding air becomes more humid. This moisture-laden air must move away from the product so that further moisture removal can continue.

The Cabinet Solar Dryer is therefore designed around the relationship between:

solar heat, airflow, tray loading, product surface area and moisture removal.

Actual drying performance can vary according to the commodity, initial moisture, preparation method, slice thickness, amount loaded on each tray, airflow, temperature, humidity, available solar radiation and required final moisture condition.

For this reason, one fixed drying time or temperature should not be assumed for every product.

Capacity from Small Batches to Larger Processing Requirements

The Cabinet Solar Dryer is available from 5 kg/batch to 500kg/batch, allowing buyers to select a configuration according to their actual processing requirement.

Capacity should not be evaluated only by asking how many kilograms can physically fit inside the chamber.

For example, sliced mango, onion, lightweight mint leaves and dense ginger pieces may occupy tray space differently even when their fresh weight is similar.

A better capacity-selection approach considers:

fresh input quantity, usable tray area, product thickness, loading density, commodity type and required production schedule.

This is particularly useful for SHGs, FPOs, entrepreneurs and processing businesses that may handle multiple products during different seasons.

Suitable for Fruits, Vegetables, Spices, Herbs and More

The Cabinet Solar Dryer can be evaluated for a wide range of suitable food and agricultural applications.

Fruit applications may include mango, banana, apple, grapes and figs.

Vegetable applications can include onion, tomato, ginger, garlic and chilli.

Spices and herbs may include turmeric, curry leaves, mint and fenugreek.

Selected floral and medicinal raw materials such as rose petals and suitable herbal materials may also be processed according to their specific drying requirements.

Each commodity should be treated individually. Preparation steps such as washing, peeling, slicing, blanching, curing or cutting—where required—take place separately before drying.

Similarly, grinding, milling, packaging and storage remain separate operations after the moisture-reduction stage.

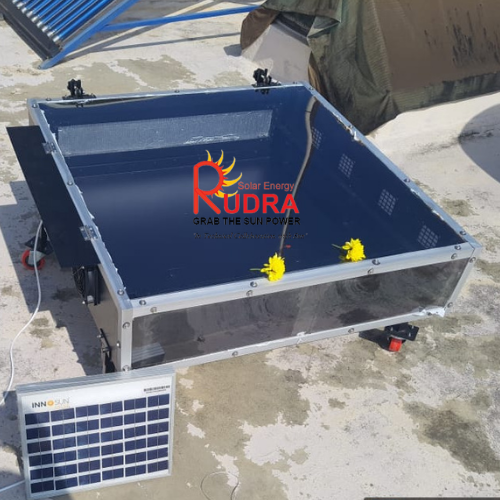

Enclosed Cabinet Construction

The dryer uses a food-grade aluminium powder-coated body with glazing options including UV-stabilised polycarbonate or toughened glass, depending on the selected configuration.

Removable food-contact trays make product loading and cleaning more practical between batches.

The enclosed construction is particularly useful for processors who want a more organised alternative to placing food or agricultural produce directly in an open outdoor environment.

Product and system specifications should always be matched to the selected model and application.

Direct and Indirect Solar Heating with Backup Options

The Cabinet Solar Dryer supports direct + indirect solar heating, while optional electric or biomass backup can be considered where required.

Solar-only operation uses available solar energy as the primary heat source.

For businesses that require greater operating flexibility during periods of reduced solar radiation or challenging weather conditions, an appropriate backup configuration can be evaluated according to the product and production schedule.

An enclosed chamber should not be interpreted as making the dryer completely independent of weather. Available solar radiation, ambient temperature and humidity still influence drying behaviour.

Airflow and Tray Loading Matter

A solar dryer should not be evaluated only by maximum chamber temperature.

Air must be able to move around the loaded product and remove released moisture from the chamber.

Excessive tray loading may restrict airflow and increase differences in drying behaviour across the batch.

For sliced fruits and vegetables, reasonably consistent preparation and controlled loading can help provide a more manageable batch.

Lightweight herbs may require a different loading approach from dense vegetables or fruit pieces.

The most suitable loading method therefore depends on the commodity rather than one universal tray rule.

Built for Different Types of Buyers

The Cabinet Solar Dryer can be considered by:

farmers and growers, Self-Help Groups, Farmer Producer Organisations, food-processing entrepreneurs, rural enterprises, MSMEs, herbal processors, research organisations, educational institutions and businesses developing value-added products.

A small processor testing a new dried-food concept may have a very different requirement from an FPO or processing company operating regular commercial batches.

This is why Rudra Solar Energy offers the Cabinet Solar Dryer across a broad capacity range rather than treating one size as suitable for every user.

Selecting the Right Cabinet Solar Dryer

Before selecting a model, buyers should ideally identify:

the primary commodity, fresh kilograms per batch, form of the material entering the dryer, normal operating season, desired processing scale and whether backup heating is required.

Usable tray area and loading behaviour should be considered together with batch capacity.

For example, a processor working mainly with herbs may select and operate trays differently from a business handling sliced fruits or vegetables.

Cabinet Solar Dryer from Rudra Solar Energy

Rudra Solar Energy manufactures solar thermal solutions including solar dryers for different food, agricultural and processing requirements. The company’s current website positions solar dryers as one of its core product categories alongside other solar thermal technologies.

The Cabinet Solar Dryer is positioned as a scalable product family for buyers who need an enclosed, tray-based system with solar heating, multiple capacity options and optional backup configurations.

For the most suitable configuration, buyers should share the commodity, fresh batch quantity and processing requirement before final model selection.

Looking for a Cabinet Solar Dryer? Contact Rudra Solar Energy with your product and batch requirement to identify a suitable configuration.
