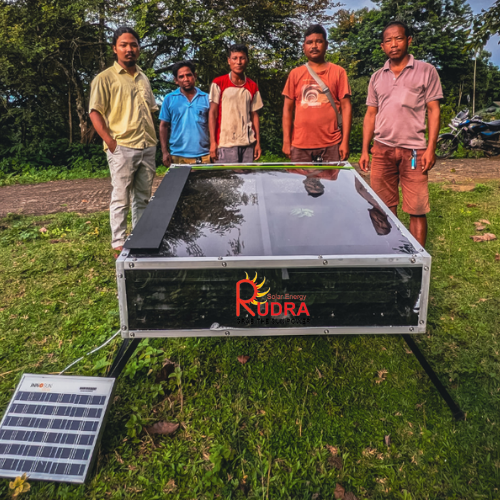

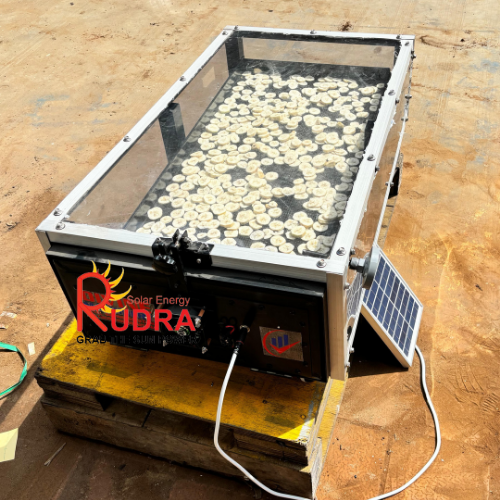

Solar Horticultural Crops Dryer for Multi-Crop Post-Harvest Processing

Rudra Solar Energy’s Solar Horticultural Crops Dryer is designed for growers, FPOs, cooperatives, SHGs, horticulture clusters and commercial processors handling suitable high-moisture horticultural produce across different seasons.

Horticulture is much broader than fruits alone. ICAR’s Horticultural Science Division includes fruits, vegetables, potato and tuber crops, mushrooms, flowers and ornamentals, spices, plantation crops, and medicinal and aromatic plants within the wider horticulture sector.

However, these materials should not be treated as one identical drying load.

A mango slice, onion slice, flower petal, mushroom, tuber material and leafy horticultural crop can differ substantially in:

Initial Moisture

Product Structure

Bulk Density

Slice or Particle Thickness

Surface Area

Loading Depth

Airflow Requirement

Temperature Sensitivity

Required Final Moisture

Post-Drying Use

For this reason, the Solar Horticultural Crops Dryer is positioned as a multi-crop horticulture processing system, not as a claim that every horticultural commodity uses the same drying setting.

National Horticulture Board also treats horticulture as a broad sector covering fruits, vegetables, flowers, nuts, spices and plantation crops, while its mandate explicitly includes post-harvest management and processing infrastructure.

Rudra systems can be configured from 5 kg/batch to 500 kg/batch, with enclosed multi-tray drying, organised airflow and optional electric or biomass backup depending on processing requirements.

Horticultural Crops Need Product-Specific Drying

One of the biggest mistakes in multi-crop horticulture processing is selecting a dryer only from the fresh kilogram quantity.

Two horticultural products with the same fresh weight may require very different:

Usable Tray Area

Layer Depth

Airflow

Moisture Removal

Preparation

Temperature

Drying Duration

Handling After Drying

For example, 50 kg of sliced mango is not physically equivalent to 50 kg of leafy material, flowers or mushrooms.

The correct dryer configuration should therefore consider:

Horticultural Crop

Product Form

Fresh Quantity

Incoming Moisture

Required Final Moisture

Slice or Product Thickness

Bulk Volume

Usable Tray Area

Loading Depth

Airflow

Daily Throughput

Seasonal Processing Requirement

ICAR’s horticulture programme itself separates crop groups such as fruits, vegetables, tubers, flowers, mushrooms, plantation crops and spices because their cultivation and post-harvest characteristics differ.

Solar Drying Applications for Horticultural Crops

Fruit Crop Drying

Suitable prepared fruits can be dried where dehydration forms part of the required post-harvest process.

Potential applications can include:

Mango

Banana

Papaya

Guava

Amla

Pineapple

Apple

Pear

Sapota

Other Suitable Fruit Crops

Fruit preparation may involve washing, peeling, deseeding, cutting, slicing or suitable pre-treatment before drying.

The solar dryer performs the moisture-reduction stage, not all fruit-processing operations.

Fruit-specific buyers can still use the dedicated Solar Fruit Dryer page; the Horticultural Crops Dryer is intended for buyers handling a wider seasonal crop mix.

Vegetable Crop Drying

Prepared vegetables can also be processed in separate batches.

Applications may include:

Onion

Garlic

Tomato

Carrot

Beetroot

Potato

Okra

Leafy Vegetables

Other Suitable Vegetables

NHB and ICAR both treat vegetables as a major horticultural crop group, with ICAR also separately covering root, tuber and bulbous crops.

The correct loading should be based on product form and moisture rather than assuming that every vegetable fits the same kilograms-per-tray value.

Flower Drying

Suitable flowers and floral materials can be dried for appropriate downstream applications.

Possible examples include:

Rose

Marigold

Hibiscus

Jasmine Material

Selected Petals

Other Suitable Floral Produce

Flowers can be relatively light and delicate, so tray depth and airflow may differ substantially from dense vegetables or fruits.

The dedicated Solar Flower Dryer remains the stronger page for flower-specific buyer searches; this broader product targets mixed horticulture processors.

Root, Tuber and Bulb Crop Drying

ICAR horticulture specifically includes root, tuber and bulbous crop management within its horticultural research structure.

Depending on the intended dried product, suitable prepared materials may include:

Potato

Sweet Potato

Selected Tuber Crops

Onion

Garlic

Other Compatible Root or Bulb Materials

Operations such as washing, peeling, slicing, blanching or other preparation remain separate from the drying stage.

Mushroom Drying

Mushrooms are also included within ICAR’s horticultural crop programme.

Prepared mushrooms can be considered for drying where the product and process are suitable.

Because fresh mushrooms contain substantial moisture and have a relatively delicate structure, loading depth, airflow and drying temperature should be selected carefully rather than copied from a grain or dense vegetable process.

Herb, Spice and Aromatic Crop Applications

The broader horticulture sector also includes spices and medicinal or aromatic plants.

Suitable material may potentially include selected:

Herbs

Chilli

Ginger

Turmeric Material

Coriander

Mint

Other Compatible Horticultural Ingredients

However, Rudra already has dedicated Solar Spice Dryer, Solar Herb Dryer, Solar Medicinal Plants Dryer and Solar Ayurvedic Raw Materials Dryer pages.

Therefore, this Horticultural Crops Dryer page should use these applications primarily to demonstrate multi-crop flexibility, not replace their specialised search intent.

Common Buyer Questions About Solar Horticultural Crop Drying

What is a Solar Horticultural Crops Dryer?

A Solar Horticultural Crops Dryer is an enclosed multi-tray drying system designed to use solar thermal energy and organised airflow for moisture reduction from suitable horticultural produce.

It is especially relevant where a processor handles different crops across seasons rather than only one permanent commodity.

Potential users may include:

Horticulture Farmers

FPOs and FPCs

Farmer Cooperatives

SHGs

Horticulture Clusters

Packhouse-Linked Processing Units

Nursery and Grower Networks

Agro-Processing MSMEs

Common Processing Centres

Commercial Horticulture Enterprises

The appropriate system should still be selected around the actual crop mix and processing requirement.

Which horticultural crops can be dried using a solar dryer?

Potentially suitable applications can include prepared:

Fruits

Vegetables

Flowers

Root Crops

Tuber Crops

Bulb Crops

Mushrooms

Selected Herbs

Selected Spices

Suitable Aromatic Plant Materials

Other Compatible Horticultural Produce

ICAR officially treats these as distinct parts of the horticulture sector rather than one narrow crop category.

Not every horticultural product automatically requires solar drying, and different materials should not use one universal operating schedule.

How is this different from the Solar Agricultural Products Dryer?

The Solar Agricultural Products Dryer addresses broad farm and agricultural produce across multiple agricultural categories.

The Solar Horticultural Crops Dryer is more specifically positioned around:

Perishable Horticultural Produce

Fruit and Vegetable Clusters

Flower and Mushroom Applications

Tuber and Bulb Crops

Seasonal Horticulture Surplus

Horticulture FPOs

Packhouse-Linked Value Addition

Multi-Crop Horticulture Processing

This distinction helps keep the buyer intent separate.

How is this different from a Solar Fruit Dryer or Solar Vegetable Dryer?

A dedicated Solar Fruit Dryer is for buyers primarily processing fruits.

A dedicated Solar Vegetable Dryer is for vegetable-focused buyers.

The Solar Horticultural Crops Dryer is designed for users whose processing calendar may look more like:

Mango in one season

Onion or tomato in another

Flowers during another period

Mushrooms in smaller regular batches

Other compatible horticulture produce during seasonal peaks

The key intent here is multi-crop horticulture processing, not one individual commodity.

Can one solar dryer process fruits, vegetables, flowers and mushrooms?

Potentially yes, if the dryer configuration is suitable and the products are processed in separate batches.

However, each product may need different:

Preparation

Tray Loading

Layer Depth

Airflow

Temperature

Drying Duration

Final Moisture

Cleaning Between Batches

Multi-crop capability therefore means the same equipment can potentially support several compatible applications — not that every crop uses one identical process.

Does a 50 kg horticultural dryer hold 50 kg of every crop?

No.

Nominal capacity should not be interpreted as identical practical loading for every horticultural commodity.

For example:

50 kg of sliced mango

50 kg of flowers

50 kg of mushrooms

50 kg of onion

can occupy significantly different tray volumes and carry different moisture loads.

The more useful sizing approach is:

Batch Weight + Product Volume + Moisture Load + Usable Tray Area + Loading Depth + Airflow

rather than kilogram capacity alone.

What capacity Solar Horticultural Crops Dryer should an FPO choose?

An FPO should size the dryer according to aggregated processing volume, not the production of only one member.

Important inputs include:

Main Crops Collected

Peak Seasonal Volume

Fresh Quantity per Day

Batch Quantity

Number of Batches

Processing Season

Usable Tray Area

Preparation Capacity

Required Drying Throughput

Packaging Capacity

Storage Capacity

Hybrid Requirement

NHB specifically promotes post-harvest infrastructure as a common facility for clusters of horticulture projects, which makes aggregate-volume planning particularly relevant for FPOs and group processing.

Rudra configurations range from 5 kg/batch to 500 kg/batch, but the correct capacity depends on the actual crop-flow plan.

Why is tray area important for horticultural crops?

Horticultural materials differ dramatically in shape, density and surface area.

A leafy or floral material can occupy much more physical space per kilogram than a dense sliced root or tuber.

Tray area therefore influences:

Product Layer Thickness

Air Contact

Batch Volume

Moisture Removal

Number of Batches

Daily Throughput

This is why a commercial buyer should ask for both batch capacity and usable drying area, rather than comparing machines only by kilograms.

How much time does horticultural crop solar drying take?

There is no universal drying time.

Actual duration depends on:

Crop

Initial Moisture

Required Final Moisture

Preparation

Slice Thickness

Product Size

Tray Loading

Airflow

Temperature

Relative Humidity

Solar Radiation

Dryer Configuration

Even two batches of the same fruit or vegetable can require different durations when incoming moisture and weather conditions differ.

Drying completion should therefore be based on the required product condition rather than a guaranteed fixed number of hours.

What temperature is suitable for horticultural crop drying?

Rudra systems have a typical operating capability of 50–80°C, but this is not a universal setpoint for horticultural produce.

The appropriate operating temperature depends on:

Crop

Product Form

Heat Sensitivity

Moisture

Slice Thickness

Airflow

Required Final Quality

Further Processing

A flower, mushroom, fruit slice and dense tuber product should not automatically be exposed to the same temperature simply because they are all horticultural crops.

Why is airflow important in horticultural drying?

Heat helps moisture leave the crop, while airflow helps carry the moisture-bearing air away from the drying material.

Good drying performance therefore depends on the relationship between:

Heat

Air Movement

Moisture Load

Product Surface Area

Tray Spacing

Layer Depth

Ambient Humidity

Simply increasing chamber temperature does not automatically solve restricted airflow through an overloaded tray.

For delicate material, airflow also needs to be appropriate so that lightweight products are not unnecessarily disturbed.

Is forced airflow available?

Yes, depending on the selected configuration.

Rudra systems can use controlled or forced airflow, including solar-powered DC fans where applicable.

The actual arrangement should be selected according to:

Crop Type

Dryer Capacity

Tray Layout

Product Depth

Moisture Load

Processing Requirement

Is a hybrid Solar Horticultural Crops Dryer available?

Yes, optional electric or biomass backup can be considered for suitable configurations.

Hybrid support may be useful where:

Processing Volume Is High

Crop Arrival Cannot Be Delayed

Weather Is Variable

Humidity Is High

A Defined Production Schedule Is Required

Commercial Processing Continues Across Seasons

Hybrid operation provides additional processing flexibility, but it does not make drying completely independent of good loading, airflow and crop-specific operating conditions.

Can solar drying work during humid or cloudy weather?

Solar drying performance changes with available solar radiation, ambient temperature and relative humidity.

An enclosed dryer can create a more organised drying environment than uncontrolled open exposure, but it should not be described as completely weather-independent.

Where the local season creates periods of weak sunshine or high humidity, a suitable hybrid system can be evaluated for additional processing continuity.

Is solar drying useful for horticulture FPOs and cooperatives?

Yes, particularly when the group handles several horticultural crops across the year.

A shared dryer may support compatible seasonal batches from:

Fruit Growers

Vegetable Growers

Flower Producers

Mushroom Producers

Tuber Crop Growers

Other Horticulture Members

NHB’s horticulture mandate includes developing post-harvest infrastructure and processing systems to reduce losses and support clusters of projects.

For group use, equipment sizing should match collection, sorting, preparation, drying, packaging and storage capacity.

Can a horticultural dryer help during seasonal surplus?

A drying system can provide an additional processing option for suitable horticultural produce when the processor has surplus that is intended for dehydration or another dried-product market.

However, drying should not be promoted as an automatic solution for every surplus crop.

The processor should first confirm:

Is there a suitable dried product?

What preparation is required?

What final moisture is needed?

Is there a buyer or downstream use?

What packaging and storage are required?

What daily quantity can realistically be processed?

This creates a more responsible value-addition plan than purchasing a dryer without a defined product pathway.

Can a solar dryer automatically increase the shelf life of every horticultural crop?

No fixed shelf-life guarantee should be made.

Drying reduces moisture when correctly performed, but actual storage stability depends on the final moisture condition as well as:

Product Type

Packaging

Storage Temperature

Ambient Humidity

Hygiene

Handling

Re-Wetting

Microbiological Condition

Downstream Processing

The dryer handles the moisture-reduction stage; the entire storage system determines how the dried product performs afterwards.

What happens before horticultural produce enters the dryer?

Depending on the commodity, preparation may include:

Sorting

Grading

Washing

Peeling

Deseeding

Cutting

Slicing

Shredding

Blanching

Other Crop-Specific Pre-Treatment

These steps remain separate from drying.

For example, a potato or fruit-processing line may require very different preparation from flower or mushroom drying.

What happens after horticultural drying?

Depending on the intended product, post-drying operations may include:

Cooling

Moisture Verification

Sorting

Grading

Grinding

Milling

Sieving

Packaging

Storage

Batch Identification

Further Processing

Protection From Re-Wetting

Drying should therefore be integrated into the broader post-harvest workflow rather than treated as the complete processing chain.

Is a Solar Horticultural Crops Dryer suitable for packhouse-linked processing?

It can be suitable where a packhouse, collection centre or horticulture cluster also needs a dedicated drying/value-addition line.

A packhouse may already perform:

Receiving

Sorting

Grading

Cleaning

Packing

Storage

A solar dryer can be added where specific selected produce requires moisture reduction as a separate processing pathway.

It should not be presented as a replacement for cold storage, pre-cooling, grading or fresh-market packing.

NHB treats pre-cooling, cold rooms and other post-harvest functions as distinct infrastructure components, reinforcing that drying is only one part of horticultural post-harvest management.

What is the price of a Solar Horticultural Crops Dryer?

The price depends on the actual technical configuration.

Important factors include:

Batch Capacity

Drying Chamber Size

Usable Tray Area

Number of Trays

Airflow Configuration

Construction

Solar-Only or Hybrid Operation

Electric Backup

Biomass Backup

Monitoring Requirement

Installation

Customisation

Crop Mix

For example, an FPO handling bulky flowers and leafy material may require different usable drying area from another FPO processing sliced fruits or tubers at the same fresh kilogram quantity.

Therefore, Solar Horticultural Crops Dryer price should be compared against usable processing capacity and crop mix, not purchase price or kilogram rating alone.

What information should I provide for a quotation?

Share:

Main Horticultural Crops: What will be dried?

Product Form: Whole, sliced, cut, shredded, leaf, flower, mushroom or another form?

Fresh Quantity: kg/batch or kg/day?

Peak Seasonal Quantity: Maximum expected processing load?

Incoming Moisture: Known or approximate?

Required Final Moisture: What condition is required?

Number of Crops: Single crop or multi-crop?

Processing Calendar: Which crop arrives in which season?

Daily Throughput: How many batches?

Location: Where will the system operate?

Preparation: What happens before drying?

Further Processing: Packing, grinding, storage or another stage?

Hybrid Requirement: Solar-only, electric backup or biomass backup?

These details provide a much better basis for equipment selection than simply asking for a 50 kg or 100 kg dryer.

How do I choose a Solar Horticultural Crops Dryer manufacturer?

For multi-crop horticulture applications, the manufacturer should understand both the crop mix and post-harvest workflow.

Important questions include:

Which horticultural crops will be processed?

Can the proposed tray area handle those products?

How is airflow managed?

What capacity applies to each major crop?

Can products be processed in separate batches?

What cleaning is needed between products?

What operating-temperature capability is available?

Is hybrid backup available?

What installation guidance is provided?

What operator training is available?

What after-sales support is available?

The system should be selected around actual horticultural applications rather than assuming that one capacity rating behaves identically for fruits, vegetables, flowers, mushrooms and tubers.

Horticulture Post-Harvest Management Is More Than Drying

A horticulture value chain may involve:

Harvesting

Collection

Sorting

Grading

Washing

Pre-Cooling

Cold Storage

Ripening Where Applicable

Cutting or Slicing

Drying

Cooling

Packaging

Storage

Transport

Further Processing

Which stages apply depends on the crop and intended market.

NHB specifically promotes modern post-harvest infrastructure as an integral part of horticulture development, while ICAR maintains dedicated post-harvest and processing work for fruits and vegetables.

The Solar Horticultural Crops Dryer performs the moisture-reduction stage only.

It does not replace refrigeration, cold storage, ripening, grading, packing or other separate post-harvest systems.

Why Multi-Crop Horticulture Needs Flexible Dryer Selection

Horticulture processors often face a different challenge from single-commodity processors:

the crop changes through the year.

One processing centre may handle:

Mango during summer

Onion or garlic during another season

Vegetables during peak harvest

Flowers or herbs in smaller batches

Mushrooms through organised production cycles

The useful dryer is therefore not simply the model with the highest capacity.

It should have an appropriate combination of:

Usable Tray Area

Batch Flexibility

Airflow

Loading Depth

Cleaning Access

Temperature Capability

Hybrid Requirement

Processing Schedule

This is the key reason this product exists separately from Rudra’s individual fruit, vegetable, flower, spice and herb dryer pages.

Post-Drying Moisture Management

After drying, horticultural material should be handled according to the intended product.

Potential requirements include:

Cooling

Final Moisture Checking

Protected Handling

Suitable Packaging

Dry Storage

Protection From Humidity

Batch Segregation

Further Processing

A dried material can absorb moisture again from humid surroundings, so drying should not be treated as the final control point in the process.

Solar Horticultural Crops Dryer for Commercial Processing

Rudra Solar Energy’s Solar Horticultural Crops Dryer can be configured for users ranging from farm-level enterprises to organised horticulture clusters.

Potential users include:

Horticulture Farmers

Fruit and Vegetable Growers

Flower Growers

Mushroom Producers

FPOs and FPCs

SHGs

Farmer Cooperatives

Horticulture Clusters

Packhouse-Linked Processing Centres

Common Processing Facilities

Agro-Processing MSMEs

Commercial Horticulture Enterprises

The appropriate configuration depends on crop mix, fresh quantity, moisture load, tray requirement, airflow and production calendar.

Rudra Solar Energy for Horticultural Crop Drying

Rudra Solar Energy designs and manufactures solar dryer systems for agricultural, horticultural, food-processing and commercial applications.

The Solar Horticultural Crops Dryer is designed for buyers who require a flexible drying system across suitable horticultural crops rather than a machine selected for only one commodity.

Capacity configurations are available from 5 kg/batch to 500 kg/batch, with solar-primary operation, organised airflow and optional electric or biomass backup according to processing requirements.

For buyers searching for a solar horticultural crops dryer, horticulture dryer, solar dryer for horticulture crops, horticultural produce dryer, horticulture drying machine, post-harvest solar dryer, FPO solar dryer, commercial horticulture dryer or hybrid solar dryer, equipment selection should begin with the crop mix and actual daily processing requirement.

Share the main crops, fresh batch quantity, seasonal production schedule and required downstream product to discuss an appropriate system configuration.
