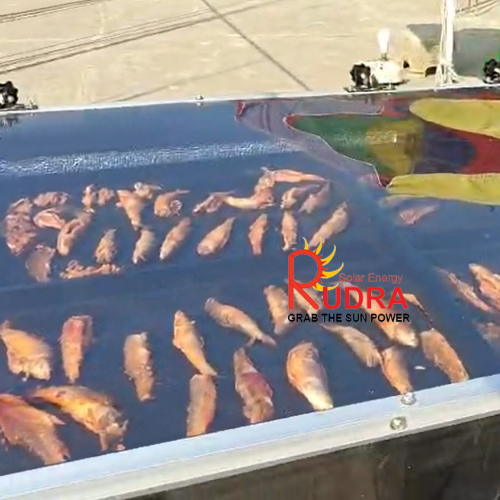

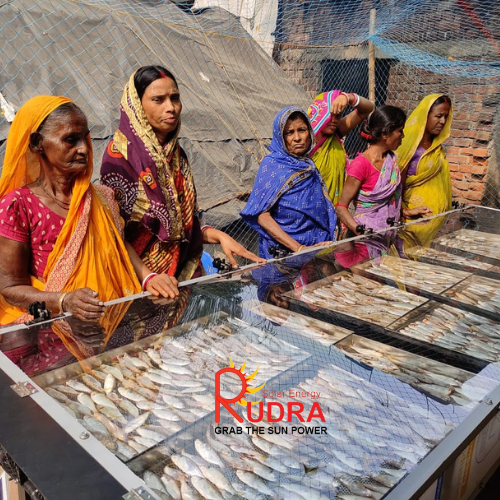

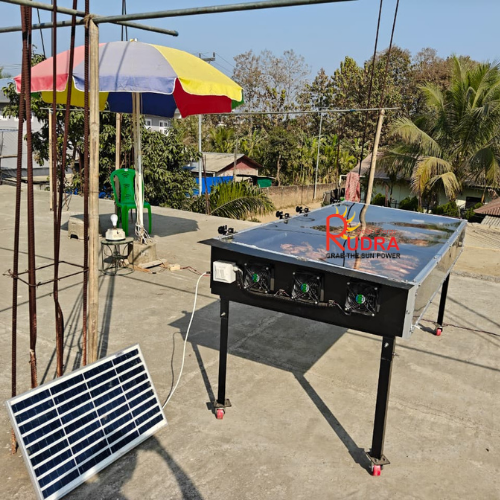

Solar Fish Dryer for Fish and Seafood Processing

Rudra Solar Energy’s Solar Fish Dryer is an enclosed multi-tray drying system designed for organised moisture reduction from appropriately prepared fish, shrimp and other suitable seafood products.

Fish drying requirements can vary significantly according to species, size, thickness, whole or prepared form, initial moisture, tray loading, airflow, temperature, humidity and the required final product condition.

For businesses looking for a solar dryer for fish, equipment selection should therefore be based on the actual fish-processing requirement rather than only nominal kilogram capacity.

The Solar Fish Dryer combines solar-assisted heating, an enclosed drying chamber and organised airflow, with capacity configurations ranging from approximately 5 kg/batch to 500 kg/batch, depending on the model and application.

Solar Dryer for Whole Fish, Fillets and Prepared Fish

Fish may enter the drying stage as:

• Whole fish
• Split fish
• Fillets
• Cut pieces
• Other appropriately prepared forms

Product thickness and size can influence moisture movement during drying. A small whole fish and a thick fillet may therefore require different loading and operating conditions.

A fish drying machine should be evaluated according to fish species, preparation, thickness, batch quantity, tray loading, airflow, temperature, humidity and required final condition.

Solar Fish Dryer for Dry Fish Processing

An enclosed solar fish dryer provides a more organised tray-based environment compared with completely open outdoor drying.

Prepared fish can be distributed across food-contact trays according to product size and batch requirements. An enclosed drying chamber can help reduce direct exposure to dust, insects and sudden outdoor contamination compared with open drying.

The dryer performs the moisture-reduction stage. Cleaning, gutting, washing, cutting, salting where applicable, inspection, packaging and storage remain separate processing operations.

Airflow in Fish Drying

Heat alone does not determine the drying process.

As moisture leaves the fish, it enters the surrounding drying air. That moisture-laden air needs to move away from the product so further moisture reduction can continue.

Commercial fish drying should therefore consider the relationship between:

Solar Heat + Product Thickness + Tray Loading + Airflow + Temperature + Humidity + Moisture Endpoint

The objective is not simply to achieve the highest possible chamber temperature. Appropriate airflow and product loading are important parts of moisture management.

Why Tray Loading Matters

Practical fish-drying capacity depends on both:

Batch Weight + Usable Tray Area

Fish pieces should be arranged with appropriate spacing rather than heavily overlapping them. A 50 kg batch of small fish can occupy the drying trays differently from 50 kg of larger split fish or fillets.

Commercial buyers should therefore consider:

• Number of trays
• Usable drying surface
• Fish dimensions
• Product spacing
• Batch quantity
• Expected daily throughput
• Number of batches required

Solar Dryer for Small Fish

Small fish can involve a large number of individual pieces distributed across the available tray area.

For small-fish processing, operators should consider fish size, quantity, product distribution, loading depth, airflow, temperature, humidity and the required final condition.

Increasing kilograms per tray by creating excessively thick layers can restrict effective air movement around the product.

Solar Dryer for Fish Fillets

Fish fillets and prepared pieces create different loading requirements from whole small fish.

Piece thickness becomes particularly important because thin and thick pieces may not lose moisture at the same rate. More consistent preparation can help organise tray loading and improve batch handling.

A solar fish dehydrator should therefore be selected around the intended product form rather than the fish species alone.

Solar Shrimp Dryer for Seafood Processing

Suitable shrimp-processing applications can also be considered within a fish and seafood drying facility.

Shrimp differs physically from whole fish and fillets, so tray distribution, product loading and drying conditions should be reassessed when the commodity changes.

A solar shrimp dryer can be evaluated according to shrimp condition, preparation, size, quantity, tray distribution, airflow, temperature, humidity and required final product condition.

Solar Food Dehydrator for Fish and Seafood

Buyers may search for this equipment using related terms such as:

• Solar Fish Dryer
• Solar Dryer for Fish
• Fish Drying Machine
• Fish Dryer Machine
• Solar Fish Dehydrator
• Solar Food Dehydrator
• Solar Food Dryer
• Commercial Fish Dryer
• Solar Dryer for Seafood
• Hybrid Solar Dryer

These terms can represent related equipment requirements, but the correct configuration should still be selected according to the actual fish or seafood product.

Multi-Product Fish and Seafood Drying

A suitably configured Solar Fish Dryer may support separate batches of compatible:

• Fish
• Prepared fish pieces
• Fish fillets
• Shrimp
• Selected seafood products

However, multi-product capability does not mean one universal drying setting.

When the product changes, the processor may need to reassess preparation, product dimensions, tray loading, spacing, airflow, temperature, drying duration and required moisture endpoint.

Food Safety and Fish Drying

Solar drying is one stage within the overall fish-processing workflow. It should not be treated as an automatic guarantee of microbiological safety, shelf life or regulatory compliance.

Fish processors should maintain appropriate procedures for raw-material quality, handling, cleaning, preparation, drying, process-endpoint assessment, cooling, packaging, storage and applicable food-safety requirements.

The final dried product should be assessed according to the processor’s required quality and safety specifications.

Solar-Primary and Hybrid Solar Fish Dryer

The Solar Fish Dryer primarily uses solar energy for drying.

Where additional operating flexibility is required, suitable configurations can be evaluated with electric or biomass backup, depending on the model and application.

A hybrid solar fish dryer may be considered according to processing location, fish type, season, batch quantity, weather conditions and production schedule.

Backup heating should be selected according to the actual operating requirement rather than assumed for every installation.

Fish Drying in Coastal and Humid Conditions

Fish and seafood processing may take place in coastal or humid environments where ambient humidity can influence the drying process.

Processors should therefore evaluate solar heat together with airflow, product loading and local operating conditions.

Where production continues during cloudy or humid periods, suitable backup or hybrid operation can be considered during system selection.

Fish Dryer Temperature and Drying Conditions

A typical system range can be around 50–80°C, depending on the configuration and application. This should not be interpreted as one required temperature for every fish or seafood product.

Actual operating conditions can vary with:

• Fish species
• Product thickness
• Preparation
• Desired dried product
• Airflow
• Humidity
• Processing procedure
• Required final condition

Drying time can therefore vary between different products and operating conditions.

Commercial Solar Fish Dryer for Different Users

The Solar Fish Dryer can support requirements from:

• Fish processors
• Fishermen groups
• Fisheries cooperatives
• Dry-fish enterprises
• Seafood-processing businesses
• Fishery entrepreneurs
• SHGs
• FPOs and producer organisations where relevant
• Food-processing MSMEs
• Rural coastal enterprises
• Commercial dehydration units

Smaller businesses can evaluate compact configurations, while commercial processors and cooperatives handling larger quantities can consider higher-capacity options.

How to Select the Right Solar Fish Dryer

Before selecting a fish drying machine, buyers should define:

Product: Which fish or seafood product will be processed?

Form: Whole, split, fillet, pieces or shrimp?

Quantity: How many kilograms per batch or day?

Size: What is the normal fish or piece size?

Tray Requirement: How much drying surface is required?

Production: Seasonal or regular processing?

Location: Coastal, humid, inland or another environment?

Backup: Is additional heating flexibility required?

Output: What final product condition is required?

These details help match the dryer configuration with the actual processing requirement.

Solar Fish Dryer Price – What Determines Cost?

Solar Fish Dryer cost can vary according to:

• Batch capacity
• Usable tray area
• Number of trays
• Drying chamber size
• Airflow configuration
• Construction
• Solar-only or hybrid arrangement
• Backup-heating requirement
• Installation
• Customisation

A small dry-fish business may require a different configuration from a commercial seafood-processing unit, so price comparison should begin after defining the actual processing requirement.

Solar Fish Dryer Manufacturer – Rudra Solar Energy

Rudra Solar Energy designs and manufactures solar dryer systems for agricultural and food-processing applications.

The Solar Fish Dryer is available in capacity configurations of approximately 5–500 kg fresh input per batch, depending on the model and application.

For buyers searching for a solar fish dryer, solar dryer for fish, fish drying machine, fish dryer machine, solar fish dehydrator, solar dryer for seafood, solar shrimp dryer or commercial fish dryer, the right starting point is to define the seafood product, quantity, product form, location and production schedule.

Share the fish or seafood product, incoming quantity, location and processing requirement with Rudra Solar Energy to discuss a suitable dryer configuration.
