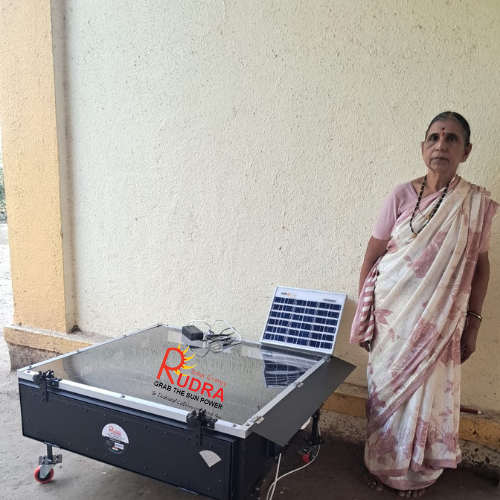

Solar Chemical Dryer for Industrial Solids, Filter Cakes, Granules & Process Materials

Rudra Solar Energy’s Solar Chemical Dryer is an application-specific solar thermal drying system developed for suitable industrial solids and process materials where controlled moisture reduction forms part of the manufacturing or material-handling workflow.

Chemical drying should not be treated like fruit, vegetable or agricultural drying.

The term “chemical” can include materials with completely different:

Physical State

Initial Moisture

Particle Size

Bulk Density

Thermal Stability

Volatility

Flammability

Dust Behaviour

Material Compatibility

Airflow Requirement

Required Final Moisture

Downstream Processing Requirement

For this reason, the first question should never be only:

“How many kilograms is the dryer?”

The more important question is:

“What exact material needs to be dried, and is warm-air solar drying technically and safely suitable for that material?”

Safety Data Sheets are particularly important in industrial drying because they can contain information on physical state, flammability, flash point, decomposition temperature, vapor pressure, particle characteristics, reactivity, incompatibilities and hazardous decomposition products. These properties can directly affect whether a material is suitable for a particular drying process.

For suitable applications, Rudra Solar Chemical Dryer configurations can combine solar-assisted heating, enclosed batch drying, organised airflow and optional hybrid support across approximately 5 kg/batch to 500 kg/batch.

Different Chemical Materials Need Different Drying Approaches

A major mistake in industrial drying is assuming that every wet chemical solid, powder or granular material can use the same dryer, temperature, tray depth or airflow.

Two materials with the same incoming weight may behave very differently during drying because of differences in:

Moisture Content

Moisture-Binding Behaviour

Particle Size

Surface Area

Bulk Density

Material Depth

Airflow Resistance

Thermal Sensitivity

Dust Formation

Vapour Generation

Required Final Moisture

Material Compatibility

A material may also change its hazard characteristics as it becomes drier. OSHA specifically notes that wet materials can create combustible-dust hazards after drying or downstream processing, including cases where an aqueous material dries into fine combustible particles.

Therefore, Solar Chemical Dryer selection should begin with:

Material Name

Material Form

Safety Data Sheet Where Applicable

Incoming Moisture

Required Final Moisture

Permitted Temperature Range

Batch Quantity

Bulk Density

Particle Size

Tray Depth

Airflow Requirement

Vapour or Dust Behaviour

Contact-Material Compatibility

Downstream Process

Solar Drying Applications for Suitable Industrial Materials

Wet Industrial Solid Drying

Many industrial processes create solid material that contains unwanted moisture after washing, filtration, precipitation or another upstream operation.

Where the specific material is compatible with warm-air solar drying, an enclosed solar drying system can be evaluated for the moisture-reduction stage.

Important variables include:

Incoming Moisture

Material Texture

Layer Thickness

Drying Surface

Airflow

Safe Temperature Range

Required Final Moisture

Batch Quantity

The dryer should not be assumed to perform the upstream chemical process that produced the wet material.

Filter Cake Drying

Filter-cake-type materials can be relevant industrial drying applications when the particular material has been verified as suitable.

A filter cake may differ substantially from another filter cake in:

Composition

Moisture

Porosity

Density

Particle Behaviour

Crusting Tendency

Dust Formation After Drying

Temperature Sensitivity

Therefore, the term filter cake alone is not enough to select a dryer.

Before sizing, the actual material, moisture-removal target and process-safety requirements should be reviewed.

Granular Material Drying

Suitable industrial granules can potentially be dried using controlled heated airflow.

Granular materials can sometimes permit better air movement than dense cakes, but practical behaviour depends on granule size, layer depth, moisture, density and the configuration of the trays.

The correct loading should therefore be defined around the actual product rather than using one universal kilogram-per-tray value.

Powder Drying

Some compatible powders may be considered for solar-assisted drying, but powders require particular attention to containment and airflow.

Very light material can move under excessive air velocity, while some fine powders can create combustible-dust hazards when dispersed in air. OSHA identifies chemical manufacturing among industries where combustible dust can occur and notes that many materials can become explosible when finely divided.

For powder applications, material behaviour and process-safety review should therefore come before equipment selection.

Suitable Mineral or Inorganic Material Drying

Certain non-volatile mineral-based or inorganic solids may be technically suitable for warm-air moisture reduction.

However, suitability must still be evaluated based on the actual material.

The fact that a material is inorganic does not automatically establish:

Safe Temperature

Non-Reactivity

Non-Toxicity

Dust Safety

Tray Compatibility

Universal Dryer Suitability

The individual process requirement remains the deciding factor.

Common Buyer Questions About Solar Chemical Drying

What materials can be dried using a Solar Chemical Dryer?

Potential applications may include suitably evaluated:

Wet Industrial Solids

Compatible Filter Cakes

Selected Granular Materials

Selected Powders

Non-Volatile Solid Intermediates

Suitable Mineral-Based Materials

Suitable Inorganic Solids

Water-Wet Process Materials

Industrial Raw Materials Requiring Moisture Reduction

Other Compatible Solid Process Materials

This list describes potential application types, not automatic approval for every material within those categories.

The exact product should be reviewed before finalizing the dryer.

Can every chemical be dried using a solar dryer?

No.

A Solar Chemical Dryer should not be presented as universally suitable for every chemical.

A material may be unsuitable for a standard warm-air solar dryer if it is:

Highly Volatile

Flammable Under Proposed Conditions

Thermally Unstable

Reactive

Capable of Hazardous Vapour Release

Incompatible With Contact Materials

Capable of Dangerous Dust Formation

Likely to Produce Hazardous Decomposition Products

OSHA’s SDS requirements specifically include flash point, flammability, auto-ignition temperature, decomposition temperature, vapor pressure, reactivity, hazardous reactions and incompatible materials because these characteristics matter to safe handling and processing.

The drying application should therefore be evaluated material by material.

What information should I provide before asking whether my chemical can be solar dried?

For an initial technical evaluation, provide:

Material Name

Safety Data Sheet Where Applicable

Physical Form

Incoming Moisture

Required Final Moisture

Fresh Batch Quantity

Bulk Density If Available

Particle Size or Material Thickness

Permitted Process Temperature

Known Vapour Characteristics

Known Dust Characteristics

Material Compatibility Requirements

Current Drying Method

Required Daily Throughput

Downstream Process

This gives a much stronger basis for equipment selection than simply asking for a “50 kg chemical dryer.”

Can filter cake be dried in a solar dryer?

Potentially yes, where the specific filter cake is technically and safely compatible with the proposed drying conditions.

The drying process should consider:

Initial Moisture

Cake Thickness

Material Porosity

Tray Loading

Airflow

Safe Product Temperature

Crusting Behaviour

Required Final Moisture

Dust Behaviour After Drying

A wet material can behave very differently after moisture removal, so evaluation should include the dried state as well as the wet state.

Can powders and granules be dried in the same Solar Chemical Dryer?

A suitably engineered system may potentially process different compatible materials in separate batches, but that does not mean they should use identical operating conditions.

Powders and granules can differ in:

Bulk Density

Airflow Resistance

Dust Generation

Loading Depth

Surface Area

Moisture Removal Rate

Containment Requirement

Cleaning Requirement

Multi-material capability should therefore be based on compatibility and process design rather than a generic “one dryer for all chemicals” claim.

Does a 50 kg Solar Chemical Dryer handle 50 kg of every material?

No.

Nominal kilogram capacity should not be treated as universal usable loading.

For example, 50 kg of a dense granular material can occupy substantially less tray volume than 50 kg of a low-density wet cake.

Similarly, two materials at the same weight may contain very different quantities of water that need to be removed.

Capacity should therefore be understood as:

Batch Weight + Moisture Load + Bulk Density + Usable Tray Area + Loading Depth + Airflow + Material Behaviour

rather than kilograms alone.

What capacity Solar Chemical Dryer should an industrial buyer select?

Correct capacity depends on the actual process.

Important inputs include:

Incoming Material per Batch

Moisture to Be Removed

Required Final Moisture

Daily Production Requirement

Number of Batches

Bulk Volume

Usable Tray Area

Safe Loading Depth

Airflow Requirement

Available Drying Hours

Solar Availability

Hybrid Requirement

Rudra Solar Energy can configure systems from approximately 5 kg/batch to 500 kg/batch, but the final loading should be matched to the actual industrial material.

Why is tray area important in chemical drying?

Weight alone does not define drying capacity.

A material spread in a relatively thin layer exposes more surface to heated air than the same mass loaded deeply into a smaller tray area.

However, the appropriate layer depth depends on the material.

Tray sizing should therefore consider:

Material Volume

Bulk Density

Layer Thickness

Airflow Path

Surface Exposure

Number of Trays

Required Daily Throughput

A larger nominal capacity without sufficient usable drying area may not suit the intended product.

How long does Solar Chemical Drying take?

There is no universal chemical drying time.

Drying duration can change according to:

Material

Initial Moisture

Final Moisture Target

Particle Size

Layer Thickness

Bulk Density

Tray Loading

Airflow

Temperature

Ambient Humidity

Solar Radiation

Dryer Configuration

Hybrid Operation

Even different batches of the same material may require different drying durations when incoming moisture or environmental conditions change.

Process completion should therefore be based on the required material condition or moisture endpoint rather than one guaranteed time.

What temperature is suitable for a Solar Chemical Dryer?

Rudra systems may have a typical system capability in the approximate 50–80°C range under suitable operating conditions, but this is not a universal chemical drying temperature.

The correct operating temperature must remain appropriate for the actual material.

Important parameters may include:

Thermal Stability

Decomposition Temperature

Flash Point Where Applicable

Vapour Behaviour

Required Product Quality

Material Compatibility

Drying Rate

Process Requirement

OSHA SDS guidance specifically requires disclosure of thermal and physical properties such as flash point and decomposition temperature where relevant.

Therefore, maximum dryer capability should never be confused with the appropriate setpoint for every chemical.

Why is airflow important in chemical drying?

Heat supplies energy for moisture removal, but the released moisture then needs to be carried away from the material.

Suitable airflow can support this transfer.

However, more airflow is not automatically better.

A dense wet cake may require a different air-distribution strategy from a fine dry powder.

The airflow design should therefore consider:

Material Structure

Particle Size

Layer Depth

Dust Potential

Moisture Load

Tray Spacing

Required Ventilation

Industrial processes that can release hazardous vapours or airborne contaminants may require dedicated engineering controls beyond ordinary drying airflow. NIOSH identifies local exhaust ventilation and other engineering controls as important methods for controlling hazardous airborne chemical exposures.

Is forced airflow available in a Solar Chemical Dryer?

Forced airflow can be incorporated where suitable for the application.

Depending on the dryer configuration, solar-powered DC fans or another engineered air-movement arrangement may support moisture removal.

The required air velocity and distribution should be based on:

Material

Dust Behaviour

Dryer Size

Tray Layout

Loading Depth

Moisture Load

Process Requirement

There should not be one universal airflow setting for every chemical application.

Is a hybrid Solar Chemical Dryer available?

A hybrid configuration can be considered where suitable processing continuity is required.

Optional supplementary heat may support drying during weak solar conditions or when production schedules require additional operating flexibility.

However:

Hybrid heating does not make an unsuitable material safe to dry.

The same temperature, flammability, reactivity, vapour, dust and material-compatibility considerations continue to apply.

Can a Solar Chemical Dryer work during cloudy or humid weather?

Solar drying performance naturally changes with:

Solar Radiation

Ambient Temperature

Relative Humidity

Moisture Load

Airflow

Dryer Configuration

An enclosed dryer can provide a more organised drying environment than uncontrolled open exposure, but it should not be described as completely independent of weather.

Where continuous processing is commercially important, a suitable hybrid arrangement can be evaluated.

What construction material should be used for chemical drying?

There is no single universal construction material for every chemical.

Depending on the application and model, a Rudra dryer may use combinations of:

Aluminium

Stainless Steel

Application-Specific Trays

Appropriate Structural Components

Other Compatible Contact Materials Where Required

The correct product-contact material should be selected only after checking compatibility with the material being processed.

This is particularly important for chemical applications because a material suitable for a food dryer is not automatically compatible with every industrial substance.

Is a Solar Chemical Dryer suitable for hazardous chemicals?

A standard Solar Chemical Dryer should not automatically be considered suitable for hazardous chemical processing.

Where the material can generate:

Flammable Vapours

Explosive Atmospheres

Combustible Dust

Toxic Emissions

Hazardous Decomposition Products

Reactive Conditions

specialised engineering, containment, ventilation, electrical classification or other process-safety controls may be required.

OSHA identifies combustible dust as a serious fire and explosion hazard and specifically includes chemical manufacturing among sectors where these hazards can occur.

Rudra system suitability should therefore be established from the actual process rather than making a blanket chemical-drying claim.

What is the price of a Solar Chemical Dryer?

Solar Chemical Dryer price depends on the application and engineering configuration.

Important cost factors can include:

Batch Capacity

Drying Chamber Size

Usable Tray Area

Number of Trays

Contact Material

Structural Material

Airflow Configuration

Fan Requirement

Monitoring Requirement

Hybrid Heating

Material-Specific Customisation

Installation

Process Controls Where Applicable

A 100 kg wet filter-cake application may require a different configuration from a 100 kg granular-material application.

Therefore, price should be compared against usable process capacity, not kilogram rating alone.

What should I send for a Solar Chemical Dryer quotation?

For a useful quotation, provide:

Material: What needs to be dried?

Material Form: Cake, granule, powder or another solid?

SDS: Available where applicable?

Incoming Quantity: kg/batch or kg/day?

Incoming Moisture: How wet is it before drying?

Final Moisture: What condition is required?

Temperature: What operating range is permitted?

Bulk Density: Available?

Particle Size: Fine powder, granules, cake or larger solids?

Current Process: How is it dried today?

Daily Throughput: How many batches?

Location: Where will the system operate?

Backup: Solar-only or hybrid requirement?

Downstream Use: What happens after drying?

These inputs reduce the risk of selecting equipment on nominal capacity alone.

How do I choose a Solar Chemical Dryer manufacturer?

For chemical applications, a manufacturer should first ask about the material and process.

A technically responsible evaluation should consider:

Material Characteristics

SDS Information Where Applicable

Initial and Final Moisture

Safe Temperature

Tray Area

Loading Depth

Airflow

Dust or Vapour Behaviour

Contact-Material Compatibility

Required Production Rate

Hybrid Requirement

Installation Conditions

After-Sales Support

Be cautious when a supplier treats every chemical material as though it can simply be loaded into one standard agricultural dryer without reviewing the actual application.

Chemical Processing Is More Than Drying

A Solar Chemical Dryer should be positioned correctly within the overall industrial process.

Depending on the application, the complete workflow may include:

Reaction

Mixing

Filtration

Separation

Washing

Precipitation

Crystallisation

Centrifuging

Drying

Grinding

Milling

Blending

Formulation

Packaging

Storage

Only the relevant stages apply to each industrial process.

The Solar Chemical Dryer performs the moisture-reduction stage only.

It should not be presented as though it automatically performs reaction, filtration, separation, grinding, blending or final formulation.

Why Airflow and Moisture Load Matter in Chemical Drying

Solar heat provides thermal energy, but effective drying depends on the interaction between heat and mass transfer.

Important practical factors include:

Heat Input

Material Surface Area

Moisture Load

Air Movement

Layer Thickness

Tray Spacing

Ambient Humidity

Required Final Moisture

Simply increasing temperature does not automatically create a better process.

Similarly, loading more material into each tray may reduce effective exposure to heated air.

For fine or dust-forming materials, excessive airflow can introduce a different process problem, so airflow should be selected according to the product.

Dust and Vapour Considerations After Moisture Reduction

Chemical drying deserves additional attention because the material can behave differently after water has been removed.

A wet material may become:

More Friable

More Powdery

More Dust-Forming

More Easily Dispersed

More Sensitive to Static or Ignition

OSHA guidance specifically warns that dried residues from wet processes and materials that become fine particles downstream can create combustible-dust hazards.

Where vapour or airborne-contaminant hazards are possible, appropriate industrial ventilation and other engineering controls should be evaluated separately from the normal drying-air circuit.

Post-Drying Material Management

Completing a drying cycle does not necessarily complete the industrial process.

Depending on the material, post-drying operations may include:

Cooling

Moisture Verification

Sampling

Quality Testing

Breaking or Size Reduction

Screening

Transfer

Packaging

Storage

Protected Handling

Downstream Processing

The material should also be protected against unwanted moisture uptake if its specification requires controlled final moisture.

Actual post-drying handling should follow the material’s process and safety requirements.

Solar Chemical Dryer for Industrial Processing

Rudra Solar Energy’s Solar Chemical Dryer can be evaluated for suitable industrial users requiring controlled moisture reduction from compatible materials.

Potential users include:

Chemical Processing Units

Industrial Raw Material Processors

Mineral Processing Enterprises

Manufacturing Plants

Industrial MSMEs

Research and Pilot Processing Units

Process Development Facilities

Speciality Material Processors

Common Industrial Processing Facilities

Custom Manufacturing Units

The appropriate configuration depends on the actual material, batch volume, moisture load, tray requirement, airflow, operating temperature and process schedule.

Rudra Solar Energy for Chemical Drying

Rudra Solar Energy designs and manufactures solar dryer systems for agricultural, food-processing and selected industrial drying applications.

The Solar Chemical Dryer is positioned as an application-specific industrial drying solution rather than a universal dryer for every chemical.

Capacity configurations can be evaluated from approximately 5 kg/batch to 500 kg/batch, with solar-primary operation, controlled airflow and optional suitable hybrid configurations according to the drying requirement.

For buyers searching for a solar chemical dryer, chemical drying machine, industrial solar dryer, solar dryer for industrial materials, filter cake dryer, solar powder dryer, solar granule dryer, industrial drying machine or hybrid solar dryer, equipment selection should begin with the material and its process requirement.

Share the material name, material form, SDS where applicable, incoming moisture, required final moisture, batch quantity and permitted operating conditions to evaluate an appropriate system configuration.
