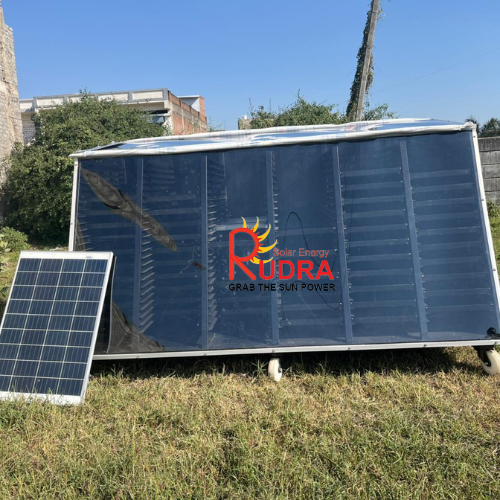

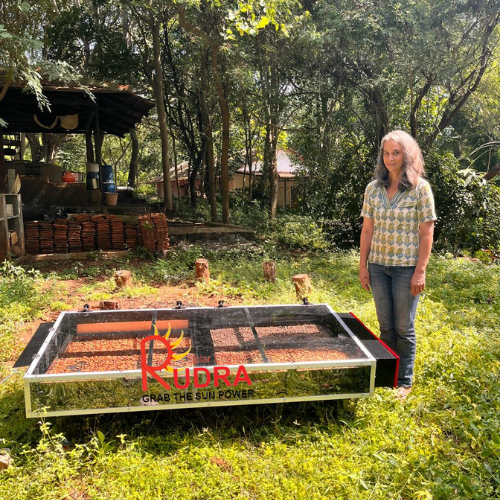

Solar Ayurvedic Raw Materials Dryer
Solar Ayurvedic raw materials dryer for suitable plant-based roots, leaves, stems, bark, rhizomes, flowers and fruits used in organised herbal and Ayurvedic processing.
Trusted by organisations across India
5 kg/batch to 500 kg/batch 100% solar
Food-grade build
Rudra Solar Energy’s Solar Ayurvedic Raw Materials Dryer is designed for growers, FPOs, herbal raw-material suppliers and commercial processors handling suitable plant-based Ayurvedic ingredients such as roots, leaves, stems, bark, rhizomes, flowers and fruits. The enclosed multi-tray system combines solar-assisted heating with organised airflow, with capacity configurations from 5 kg/batch to 500 kg/batch.
Ayurvedic-raw-material-focused solar drying system
Capacity configurations from 5 kg/batch to 500 kg/batch

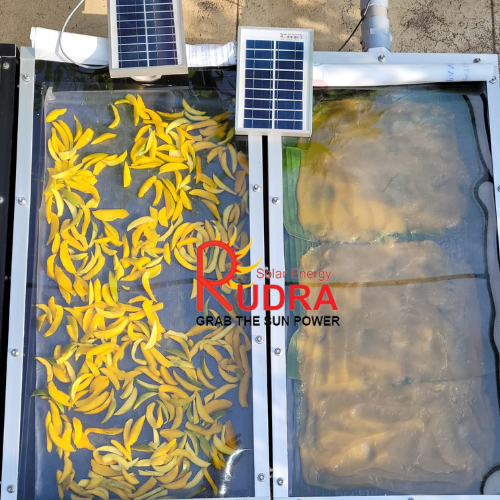

Enclosed multi-tray drying chamber
Food-contact tray arrangement
Food-grade Aluminium powder-coated body
UV-stabilised polycarbonate / toughened glass
Direct and indirect solar heating
Controlled or forced airflow depending on configuration
Optional electric or biomass backup
Suitable for compatible plant-based Ayurvedic raw materials
Supports separate multi-material batch processing
Solar-primary commercial drying configuration
Suitable for growers, FPOs and Ayurvedic raw-material processors
Standard and customised capacity configurations available
Designed around plant part, material volume and batch requirement
Overview
Solar Ayurvedic Raw Materials Dryer for Plant-Based Raw Drug Processing
Rudra Solar Energy’s Solar Ayurvedic Raw Materials Dryer is designed for organised moisture reduction from suitable plant-origin Ayurvedic raw materials where drying forms part of post-harvest handling or preparation before storage and further processing.
Ayurvedic raw materials can include different plant parts such as roots, leaves, stems, bark, rhizomes, flowers and fruits. These materials can differ substantially in moisture content, thickness, bulk density, physical structure and required processing condition.
For buyers searching for a solar Ayurvedic raw material dryer, Ayurvedic herbs drying machine or herbal raw material dryer, equipment should therefore be selected according to the exact botanical material and plant part entering the drying chamber.
The system combines solar-assisted heating, an enclosed multi-tray drying chamber and organised airflow, with capacity configurations ranging from 5 kg/batch to 500 kg/batch.
AYUSH-related institutions recognise procurement, cleaning, processing and storage as distinct parts of handling raw drugs, reinforcing the importance of organised raw-material processing rather than treating all botanical materials identically.
Ayurvedic Raw Materials Are Not One Uniform Drying Commodity
The phrase “Ayurvedic raw material” can describe materials with very different physical characteristics.
For example:
Ashwagandha Root
Shatavari Root
Giloy Stem
Tulsi Leaves
Neem Leaves
Selected Bark Materials
Selected Flowers
Amla and Other Suitable Fruit Materials
Selected Rhizomes
Other Defined Plant-Based Raw Drugs
Each may require a different preparation and drying approach.
Relevant variables include:
Plant Species
Plant Part
Material Thickness
Initial Moisture
Piece Size
Bulk Density
Tray Loading
Airflow
Temperature Sensitivity
Required Final Moisture
Intended Further Processing
This means a solar dryer for Ayurvedic raw materials should not operate with one universal drying setting for every ingredient.
Why Plant-Part Identification Matters
A processor may identify a raw material by plant name, but that alone may not be enough for dryer selection.
The system should ideally be sized and operated according to the exact plant part being processed.
A leaf behaves differently from a root.
A thick stem behaves differently from a flower.
A dense rhizome behaves differently from thin bark pieces.
For practical dryer selection, buyers should identify whether the incoming material is:
Root
Leaf
Stem
Bark
Rhizome
Flower
Fruit
Seed
Another Prepared Botanical Part
This improves tray planning, airflow selection and batch management.
Solar Dryer for Ayurvedic Roots
Roots used as Ayurvedic raw materials can create a relatively dense drying load.
Suitable applications may include appropriately prepared materials such as Ashwagandha roots, Shatavari roots and other defined botanical roots where drying is part of the required processing workflow.
Before drying, separate preparation may involve:
Sorting
Cleaning
Washing Where Appropriate
Cutting
Size Reduction
Batch Identification
The dryer performs the moisture-reduction stage only.
Grinding, extraction, formulation, medicine manufacturing and packaging remain separate processes.
Ashwagandha Root Drying
Ashwagandha is widely used as a medicinal and Ayurvedic plant raw material.
Where appropriately prepared roots require drying, the processor should consider:
Root Diameter
Piece Length
Initial Moisture
Batch Quantity
Tray Loading
Airflow
Temperature
Required Final Condition
Thicker pieces can behave differently from thinner prepared root material because moisture has a longer path to reach the surface.
A commercial Ashwagandha root dryer should therefore be operated around the actual root dimensions and desired endpoint.
Shatavari Root Drying
Shatavari can present another root-based Ayurvedic raw-material application.
The drying requirement should be based on the condition of the prepared root material rather than assuming it behaves exactly like Ashwagandha or another medicinal root.
Important variables can include:
Root Thickness
Preparation
Piece Size
Initial Moisture
Layer Depth
Tray Area
Airflow
Required Finished Condition
No one drying duration should automatically be assigned across all root materials.
Solar Dryer for Ayurvedic Leaves
Leaf-based raw materials are generally very different from roots in physical volume and loading behaviour.
Suitable plant-based applications may include selected batches of:
Tulsi Leaves
Neem Leaves
Other Defined Ayurvedic Leaf Materials
Leafy materials can occupy considerable tray surface despite having relatively low weight.
Commercial capacity should therefore consider:
Batch Weight + Material Volume + Usable Tray Area
rather than kilograms alone.
Why Ayurvedic Leaves Need Shallow, Organised Loading
Lightweight leaves can compact or overlap when loaded too deeply.
This can affect the way drying air interacts with material deeper inside the batch.
Practical loading should therefore consider:
Leaf Size
Stem Content
Bulk Volume
Layer Thickness
Tray Surface
Tray Spacing
Airflow
Required Moisture Endpoint
The aim is appropriate moisture reduction throughout the batch rather than maximum physical loading.
Giloy and Stem-Based Raw Materials
Stem-based materials such as appropriately prepared Giloy can require a different drying approach from leaves or roots.
The processor should define whether the incoming stem material is:
Whole
Cut
Sliced
Segmented
Otherwise Prepared
Material size can influence exposed surface area and moisture-transfer distance.
For a solar dryer for Giloy or similar stem materials, consistent preparation can support more organised tray loading and batch behaviour.
Bark Materials Need Their Own Processing Approach
Selected bark-based Ayurvedic raw materials can also require moisture reduction before storage or further processing.
Bark pieces may differ in:
Thickness
Surface Texture
Density
Moisture Distribution
Piece Size
Loading Pattern
Airflow Resistance
Because of these differences, bark material should not automatically use settings developed for leaves or roots.
The operator should establish a material-specific loading and drying protocol.
Rhizomes and Underground Ayurvedic Raw Materials
Rhizomes can be dense and moisture-rich compared with lightweight botanical materials.
Where an Ayurvedic raw material includes a suitable rhizome, the processor should first define:
Exact Species
Preparation Method
Whole or Cut Form
Piece Thickness
Incoming Moisture
Required Final Moisture
Further Processing
The Solar Ayurvedic Raw Materials Dryer should then be operated according to the actual material rather than a generic herbal drying rule.
Ayurvedic Flowers and Delicate Botanical Materials
Some plant-based Ayurvedic raw-material chains may also use suitable flowers.
Flower materials can be comparatively delicate and may require careful attention to:
Tray Loading
Airflow
Temperature
Handling
Layer Thickness
Required Final Condition
The objective should be controlled moisture reduction, not simply the highest possible drying temperature.
Fruits Used as Ayurvedic Raw Materials
Some plant-based Ayurvedic raw materials originate from fruits.
Where drying is technically appropriate, suitable prepared materials may include selected:
Amla
Haritaki
Bibhitaki
Other Defined Botanical Fruit Materials
The preparation required before drying depends on the intended raw-material form.
Sorting, cleaning, deseeding, cutting or other preparation remain separate processing operations.
The dryer performs moisture reduction after the material has been appropriately prepared.
Ayurvedic Raw Material Processing Requires Batch Identity
A commercial Ayurvedic raw-material processor may handle several ingredients within the same facility.
This makes batch identity and separation important.
A practical processing workflow can track:
Raw Material Name
Supplier or Source
Plant Part
Batch Number
Incoming Condition
Preparation
Drying Batch
Final Moisture Condition
Further Processing
Storage
Keeping different materials clearly separated becomes especially important when the same dryer is used for multiple ingredients in separate batches.
Cleaning Between Different Raw Materials
Multi-material processing should include appropriate cleaning between batches.
This helps support:
Raw-Material Separation
Batch Organisation
Cleaner Processing
Traceability
Reduced Carryover Between Materials
The exact cleaning procedure should suit the dryer construction, plant material and processor’s own quality-management requirements.
Solar Ayurvedic Raw Material Dryer for Multi-Ingredient Processing
A suitably configured system may potentially support separate batches of compatible plant-based Ayurvedic materials including:
Roots
Leaves
Stems
Bark
Rhizomes
Flowers
Suitable Fruits
Other Defined Botanical Raw Materials
However, multi-material capability does not mean one universal drying procedure.
Whenever the raw material changes, the operator should reconsider:
Preparation
Material Size
Loading Depth
Tray Arrangement
Airflow
Temperature
Drying Duration
Required Final Moisture
Cleaning Between Batches
Drying Is Only One Stage of Ayurvedic Raw Material Processing
Ayurvedic raw-material processing can involve several operations before and after drying.
A typical plant-based workflow may include:
Collection or Harvesting
Sorting
Cleaning
Plant-Part Separation
Required Preparation
Cutting or Size Reduction
Batch Identification
Tray Loading
Solar-Assisted Moisture Reduction
Cooling
Moisture Assessment
Grading
Storage
Further Processing
AYUSH institutions also emphasise appropriate procurement, cleaning, processing and storage of raw drugs as distinct steps.
The solar dryer specifically performs the drying/moisture-reduction stage.
The Dryer Does Not Manufacture Ayurvedic Medicines
An important technical and trust distinction is that the Solar Ayurvedic Raw Materials Dryer does not itself perform:
Extraction
Distillation
Powdering
Grinding
Formulation
Blending
Tablet Manufacturing
Capsule Manufacturing
Medicine Preparation
Therapeutic Testing
Packaging
These remain separate operations.
Likewise, using a solar dryer does not by itself establish therapeutic potency, active-constituent concentration or compliance of the final Ayurvedic medicine.
Those aspects require appropriate processing, quality control and testing.
Why Airflow Matters for Ayurvedic Raw Materials
Solar-assisted heat provides energy for moisture removal, but heat alone does not complete drying.
As moisture leaves botanical material, it enters the surrounding air.
That moisture-bearing air needs to move away so further moisture reduction can continue.
Drying behaviour therefore depends on the interaction between:
Solar Heating
Air Movement
Plant Structure
Material Thickness
Tray Spacing
Loading Depth
Initial Moisture
Ambient Humidity
Required Endpoint
The airflow requirement for lightweight Tulsi leaves can be different from dense Ashwagandha roots.
More Airflow Is Not Always Better
Airflow should be appropriate for the physical material being processed.
Very light leaves may respond differently from dense roots or bark pieces.
The operating approach should consider:
Material Weight
Particle Size
Bulk Density
Layer Depth
Tray Design
Air Velocity
Product Movement
Moisture-Removal Requirement
The goal is an appropriate heat-and-airflow balance for the raw material.
Tray Area Can Be as Important as Kilogram Capacity
This is particularly important for mixed Ayurvedic raw-material processing.
A processor handling 20 kg of leaves may require substantially more tray area than another processor handling 20 kg of roots.
Useful dryer sizing should therefore consider:
Fresh Batch Weight
Material Volume
Number of Trays
Usable Tray Area
Layer Thickness
Tray Spacing
Expected Number of Batches
Required Daily Throughput
This provides a more practical capacity estimate than kilograms alone.
Moisture Endpoint Should Be Defined
A botanical raw material may appear dry externally before reaching the required moisture condition throughout the material.
Commercial processors should therefore define an endpoint according to:
Raw Material
Plant Part
Storage Requirement
Further Processing
Buyer Specification
Internal Quality Standard
Applicable Processing Requirement
Where necessary, appropriate moisture assessment should be used instead of judging completion only by appearance.
Post-Drying Storage Still Matters
Drying does not remove the need for appropriate storage.
Botanical materials can interact with surrounding humidity after processing.
Post-drying handling may therefore include:
Cooling
Moisture Verification
Sorting
Grading
Batch Identification
Packaging
Storage
Protection from Re-Wetting
Further Processing
An organised drying process should be connected with an equally organised storage system.
Enclosed Multi-Tray Ayurvedic Raw Material Drying
Prepared raw materials are arranged on trays inside an enclosed drying chamber.
The multi-tray arrangement provides a structured environment for:
Material Distribution
Batch Separation
Tray Loading
Product Inspection
Loading and Unloading
Cleaning Between Batches
Drying Endpoint Monitoring
Compared with fully exposed outdoor drying, an enclosed system can reduce direct exposure of loaded material to uncontrolled outdoor contact.
Solar-Primary Operation with Optional Backup
The Solar Ayurvedic Raw Materials Dryer primarily uses solar energy to support moisture reduction.
Commercial raw-material processors may have fixed production schedules.
Where additional operating flexibility is required, suitable configurations can include optional electric or biomass backup.
A hybrid solar Ayurvedic raw material dryer may be evaluated according to:
Raw Material
Processing Season
Location
Batch Quantity
Solar Availability
Ambient Humidity
Required Turnaround
Production Schedule
Backup should be selected according to an actual operational need rather than included automatically.
Temperature Must Match the Raw Material
The system has a typical operating range of 50–80 °C, but this represents system capability and should not be interpreted as the correct drying temperature for every Ayurvedic raw material.
Actual temperature selection should consider:
Botanical Species
Plant Part
Material Thickness
Initial Moisture
Heat Sensitivity
Airflow
Required Final Moisture
Further Processing
Validated Processing Protocol
There is no technically responsible reason to assume that Tulsi leaves, Ashwagandha roots and bark materials should all use identical temperature settings.
No Universal Drying Time for Ayurvedic Raw Materials
Drying time can vary with:
Raw Material
Plant Part
Initial Moisture
Preparation
Piece Size
Thickness
Loading Depth
Airflow
Temperature
Relative Humidity
Solar Radiation
Required Final Moisture
Dryer Configuration
For this reason, one fixed drying time should not be promoted for every Ayurvedic raw material.
Ayurvedic Raw Material Dryer for Growers and Collectors
Suitable users can include:
Medicinal Plant Growers
Ayurvedic Raw Material Suppliers
FPOs and FPCs
SHGs
Agricultural Cooperatives
Herbal Raw Material Collectors
Rural Processing Enterprises
Botanical Processing Units
AYUSH-Sector Raw Material Businesses
Commercial Herbal Processors
Institutional Projects
The appropriate dryer configuration depends on the materials being processed and the planned operating scale.
Ayurvedic Raw Material Dryer for Commercial Processing Units
Larger processors may receive multiple botanical raw materials from different suppliers.
Their dryer-selection process should therefore consider:
Number of Ingredients
Incoming Daily Quantity
Plant Parts
Batch Segregation
Material Volume
Tray Requirement
Cleaning Schedule
Expected Batches
Required Daily Throughput
Downstream Processing Capacity
A larger drying chamber is useful only when the rest of the processing workflow can support its throughput.
Solar Ayurvedic Raw Materials Dryer vs Solar Medicinal Plants Dryer
These two product entities are related but should remain distinct.
The Solar Medicinal Plants Dryer focuses primarily on medicinal plants and the post-harvest drying behaviour of their different plant parts.
The Solar Ayurvedic Raw Materials Dryer focuses on plant-based materials entering an Ayurvedic raw-material supply and processing chain.
Its emphasis includes:
Raw Drug Identity
Plant-Part Segregation
Batch Traceability
Multi-Ingredient Processing
Cleaning Between Batches
Moisture Endpoint
Post-Drying Storage
Further Ayurvedic Processing
This helps create a different search and buyer intent rather than duplicating the Medicinal Plants page.
Ayurvedic Raw Materials Dryer vs Solar Herb Dryer
The Solar Herb Dryer primarily addresses general culinary, aromatic and compatible herb-processing applications.
The Solar Ayurvedic Raw Materials Dryer is intended specifically for suitable plant-based raw materials used within Ayurvedic processing workflows.
The distinction is based on the application and supply chain, not simply whether the material is a leaf.
How to Select the Right Solar Ayurvedic Raw Materials Dryer
Before selecting equipment, buyers should ideally define:
Raw Material: What Ayurvedic plant-based ingredient will be dried?
Plant Part: Root, leaf, stem, bark, rhizome, flower, fruit or another part?
Product Form: Whole, cut, sliced or otherwise prepared?
Batch Quantity: How many kilograms are processed per batch?
Material Volume: How much tray space does it require?
Initial Moisture: What is the condition before drying?
Final Requirement: What moisture condition is required?
Number of Materials: Will one or several Ayurvedic raw materials be processed?
Further Processing: Grinding, extraction, formulation, storage or another stage?
Production Schedule: Seasonal or regular processing?
Backup Requirement: Is solar-primary operation sufficient?
These details provide a stronger basis for dryer selection than maximum kilogram capacity alone.
Solar Ayurvedic Raw Materials Dryer Price – What Determines Cost?
The price of a Solar Ayurvedic Raw Materials Dryer can vary according to:
Batch Capacity
Usable Tray Area
Number of Trays
Chamber Dimensions
Material Volume
Airflow Configuration
Construction Material
Solar-Only or Hybrid Design
Optional Electric Backup
Optional Biomass Backup
Monitoring Requirement
Installation
Customisation
A processor working mainly with lightweight leaves may require a different tray configuration from a facility handling roots, bark and rhizomes.
The correct comparison should therefore be based on actual processing requirement and configuration, not machine price alone.
Rudra Solar Energy for Ayurvedic Raw Material Drying
Rudra Solar Energy designs and manufactures solar dryer systems for agricultural, botanical, medicinal-plant and commercial processing requirements.
The Solar Ayurvedic Raw Materials Dryer can be configured according to botanical raw material, plant part, fresh quantity, usable tray area, material volume, airflow requirement and production schedule, with capacity configurations ranging from 5 kg/batch to 500 kg/batch.
For buyers searching for a solar Ayurvedic raw materials dryer, Ayurvedic raw material drying machine, Ayurvedic herbs dryer, herbal raw material dryer, Ayurvedic plant dryer, Ashwagandha root dryer, Shatavari root dryer, Tulsi leaf dryer, Giloy dryer, botanical ingredient dryer, commercial solar dryer or hybrid solar dryer, the best starting point is to define the exact raw material and processing stage.
Share these details with Rudra Solar Energy to discuss an appropriate Solar Ayurvedic Raw Materials Dryer configuration.
Applications
Ashwagandha Root Drying
Shatavari Root Drying
Tulsi Leaf Drying
Neem Leaf Drying
Giloy Stem Drying
Ayurvedic Bark Material Drying
Ayurvedic Rhizome Drying
Ayurvedic Flower Drying
Amla Raw Material Drying
Haritaki Raw Material Drying
Bibhitaki Raw Material Drying
Plant-Based Ayurvedic Raw Drug Drying
Herbal Raw Material Processing
AYUSH Raw Material Processing
Commercial Ayurvedic Raw Material Processing
Specifications
| Product Type | Solar Ayurvedic Raw Materials Dryer |
|---|---|
| Batch Capacity | 5 kg/batch to 500 kg/batch |
| Drying Chamber | Food-grade Aluminium powder-coated body |
| Glazing | UV-stabilised polycarbonate / toughened glass |
| Heating | Direct + indirect solar; optional electric/biomass backup |
| Air Movement | Controlled / forced airflow depending on configuration |
| Temperature | 50–80 °C typical system range; actual operating temperature should be selected according to botanical raw material, plant part and processing requirement |
| Drying Rate | 4 kg per day/sq. meter |
| Drying Efficiency | 67% |
| Loading | Multi-tray arrangement |
| Primary Application | Suitable plant-based Ayurvedic roots, leaves, stems, bark, rhizomes, flowers, fruits and other defined botanical raw materials |
Quick answer
Rudra Solar Energy’s Solar Ayurvedic Raw Materials Dryer is an enclosed multi-tray solar drying system for moisture reduction from suitable plant-based Ayurvedic raw materials including roots, leaves, stems, bark, rhizomes, flowers and fruits. Capacity configurations range from 5 kg/batch to 500 kg/batch, with optional electric or biomass backup available according to raw-material and commercial processing requirements.
Explore more
Explore this range
- All Solar Dryer Every model in this family
- Cabinet Solar Dryer Versatile cabinet solar dryer for food, agricultural and value-added processing applications.
- Solar Fruit Dryer Fruit-focused solar dryer for small batches, farms, FPOs and commercial fruit-processing units.
Across the site
More Solar Dryer models
Solar Fruit Dryer
Fruit-focused solar dryer for small batches, farms, FPOs and commercial fruit-processing units.
10 kg Cabinet Solar Dryer
Compact 10 kg solar dryer for small food-processing batches, SHGs, farmers and product trials.
FAQ
Solar Ayurvedic Raw Materials Dryer — questions answered
The Solar Ayurvedic Raw Materials Dryer is part of our Solar Dryer range and runs purely on solar heat — no fuel bills. You may also compare the Cabinet Solar Dryer, Solar Fruit Dryer and 10 kg Cabinet Solar Dryer.
It is rated at 5 kg/batch to 500 kg/batch. Need a different size? We build custom and hybrid versions — request a quote.
Because it uses free sunlight, the Solar Ayurvedic Raw Materials Dryer typically pays for itself in 1–3 years. Ask for an indicative price when you request a quote.
Yes — we install and support nationwide, with hybrid backup for cloudy spells. See the locations we serve.
Browse our success stories for field results, or view the Solar Dryer range and the wider full product range. You may also compare the Cabinet Solar Dryer, Solar Fruit Dryer and 10 kg Cabinet Solar Dryer.
Tell us your capacity and location and our engineers confirm the specification and price within one working day — request a quote.
Ready when you are
Interested in the Solar Ayurvedic Raw Materials Dryer?
Tell us your crop, target capacity and location. Our engineers respond within one working day with a recommendation and indicative pricing.
